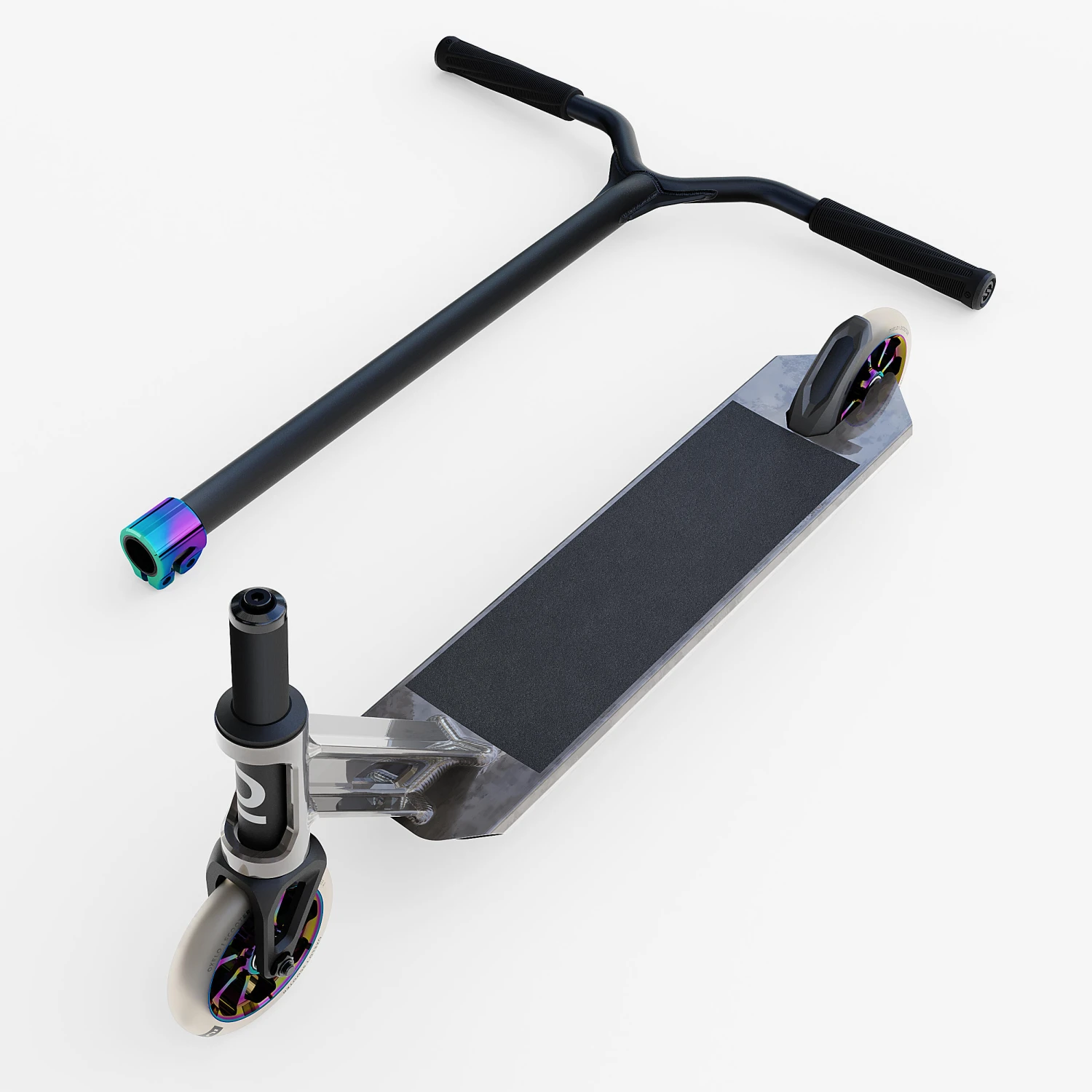

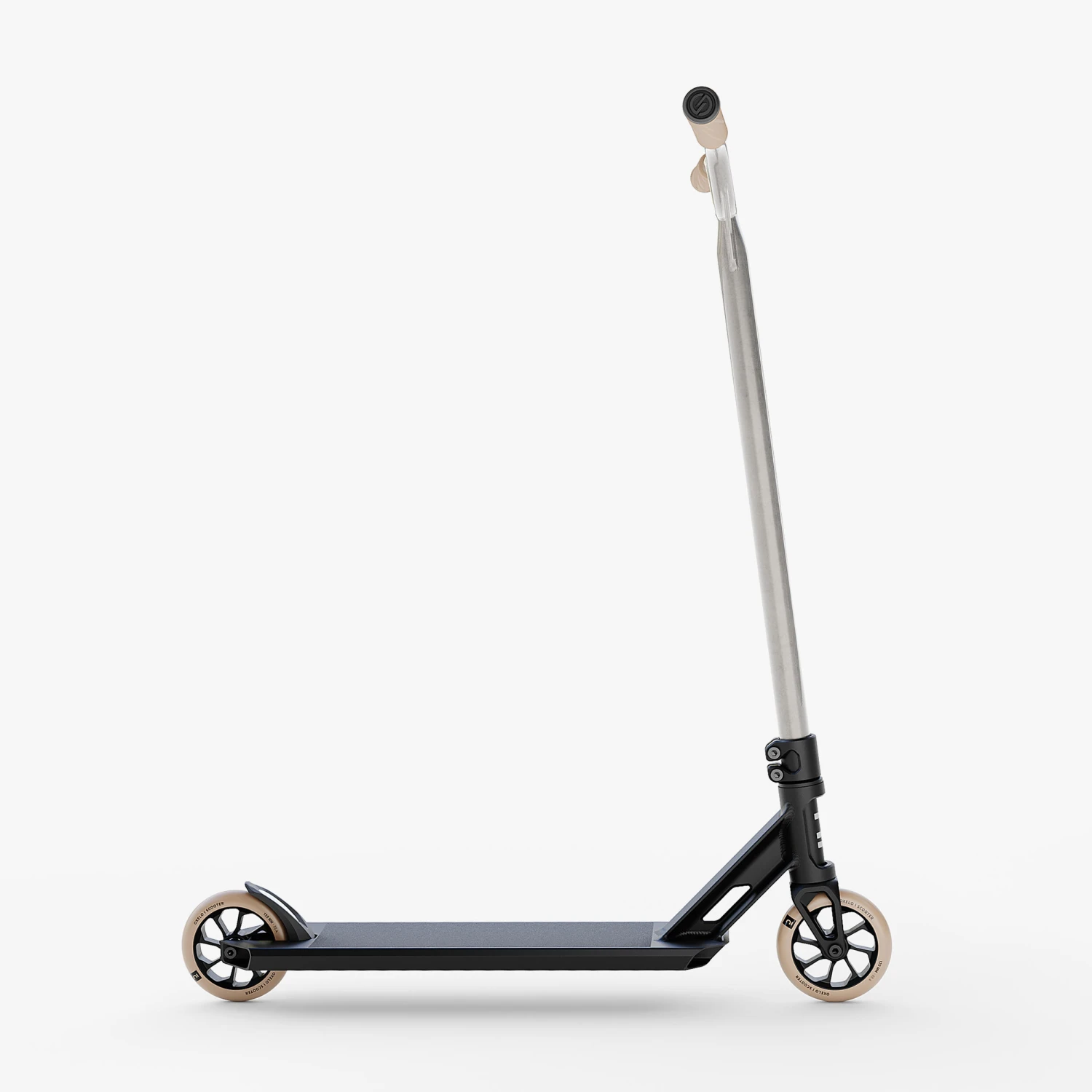

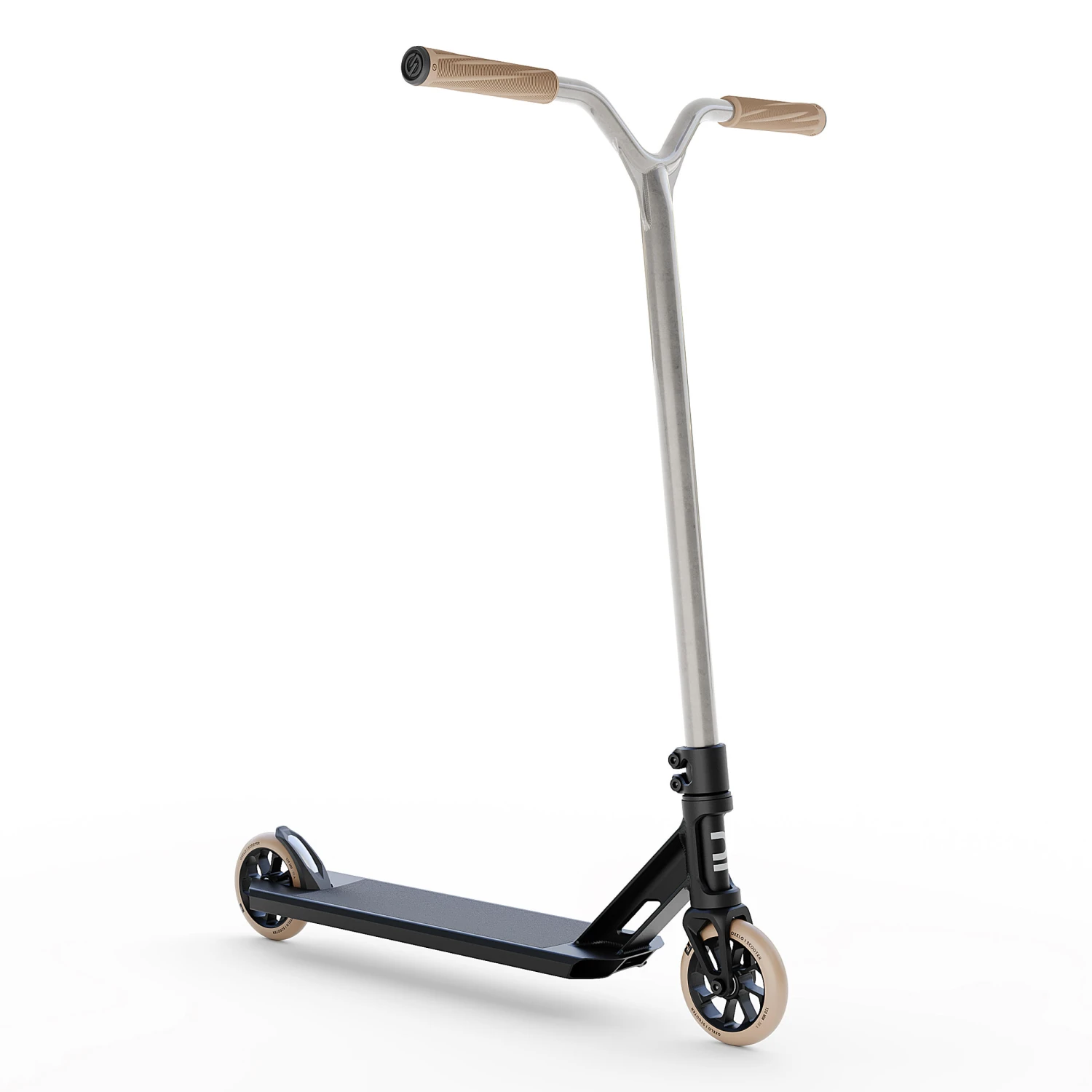

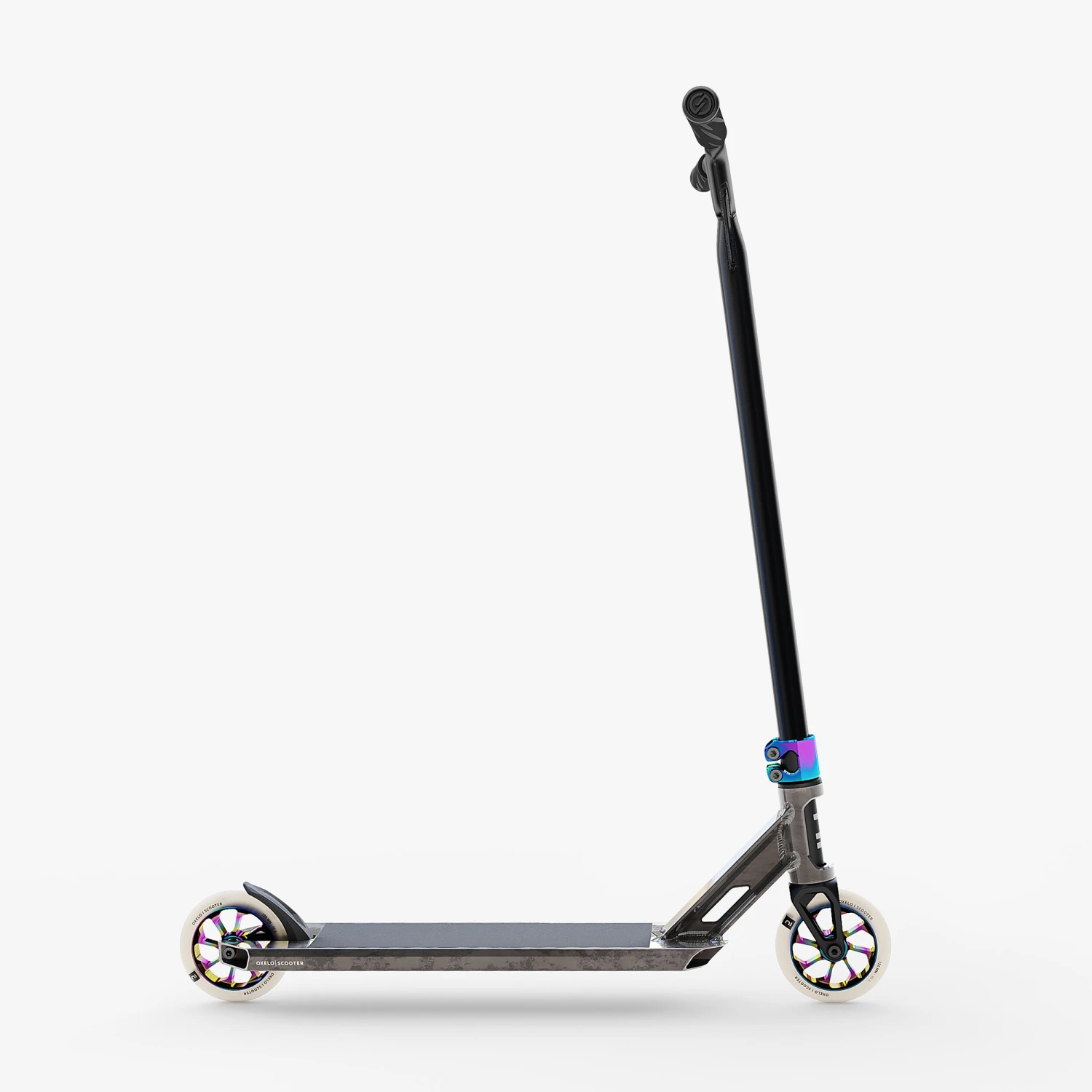

Stunt Scooter MF540

Our designers created this versatile scooter for riders above 1.5 m practising freestyle at the skatepark or in the street.Push your limits with the MF540: A sturdy freestyle scooter that’s perfect for doing tricks in the skatepark and on the street.

DECK

Deck made from 6061 T6 aluminium.
Its underside is flat for more stability when doing grinds.

Its dimensions are: 120 mm x 530 mm. (4.7″ * 20.9″)
The head tube angle is 83.5°
Our “DECK GRIP 900” comes on this freestyle scooter.
Headset is built in.

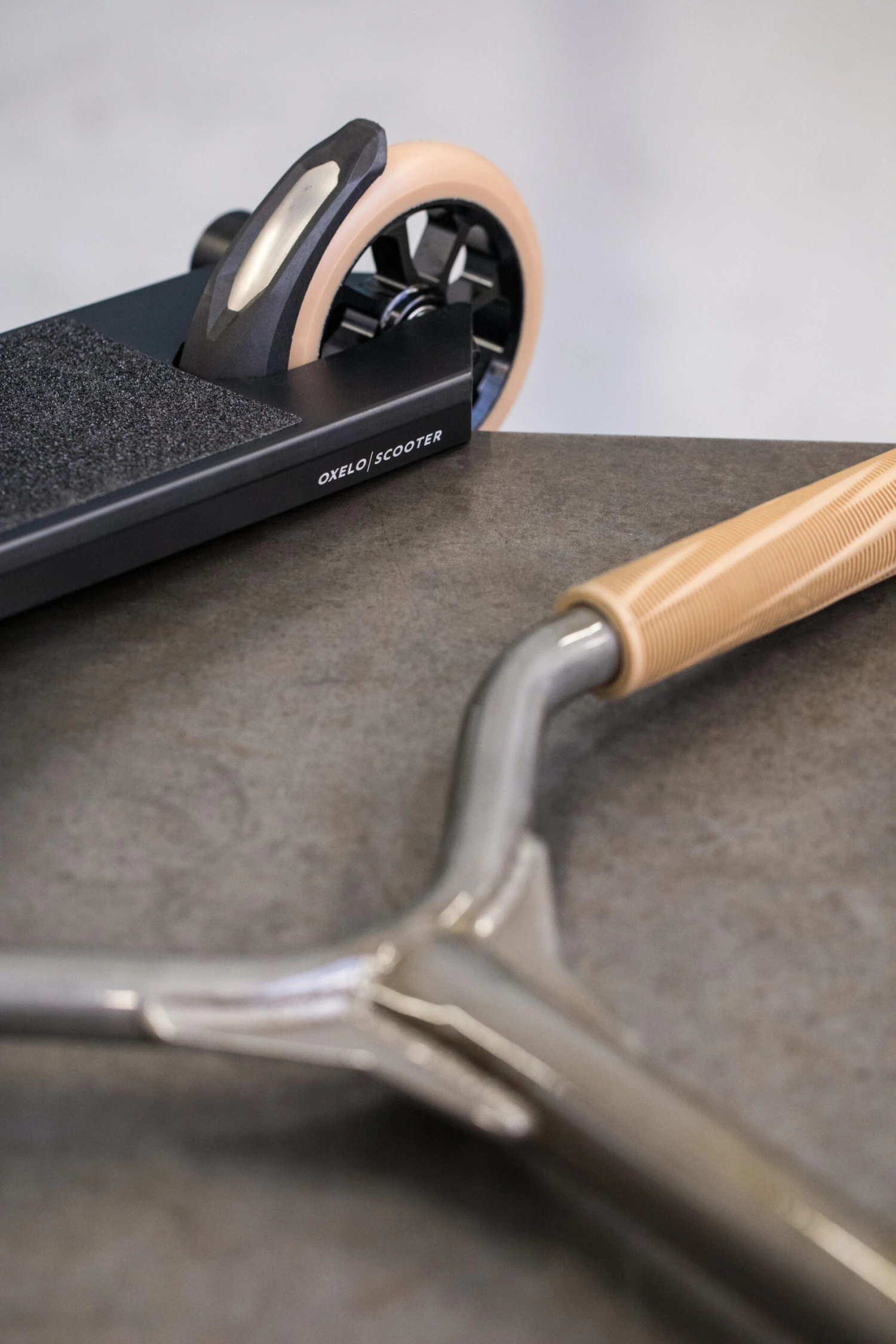

Y-BAR

The Y-Bar on this freestyle scooter has a specific design with a BACK SWEEP (the bar is curved backward) and an UP SWEEP (the bar is curved upward) for greater comfort.

It is made from 4310 chromoly steel. This handlebar is heavier yet sturdier than aluminium for safety.
Dimensions:
Inner diameter: Ø28.8 mm
Outer diameter: Ø31.8 mm
Height: 680 mm
Width: 560 mm
Total height with fork and wheel: 915 mm

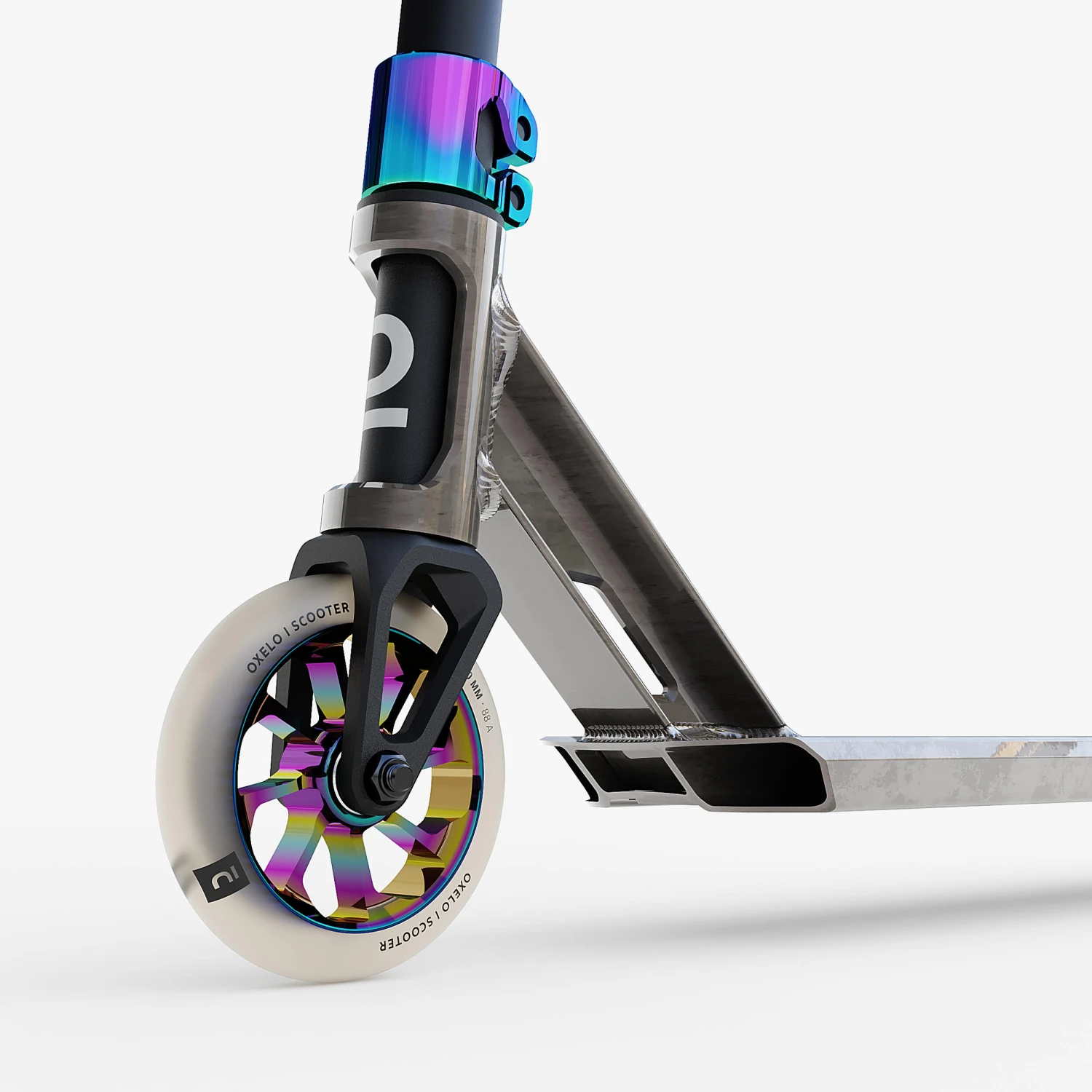

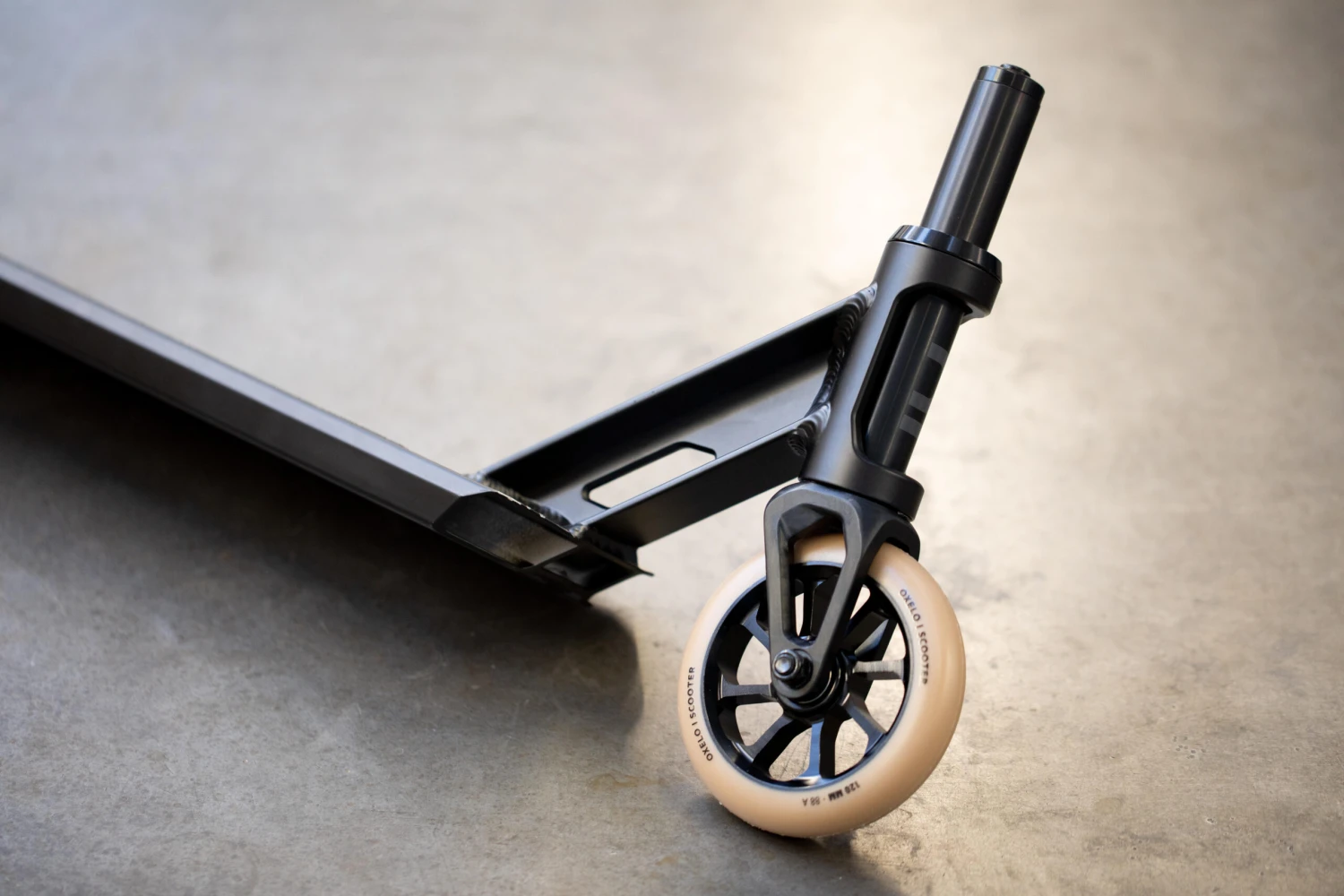

Fork

The fork on this freestyle scooter is unique in that it’s made from forged aluminium (the aluminium has been pressed several times to make it denser and more durable).

The fork is compatible with wheels up to 120 m diameter and 24 mm thick.

The spacers, which relieve the pressure exerted on the bearings, are integrated into the fork.

Compression System

This MF540 freestyle scooter is assembled with an IHC compression system.
It is very easy to adjust and helps to reduce play.

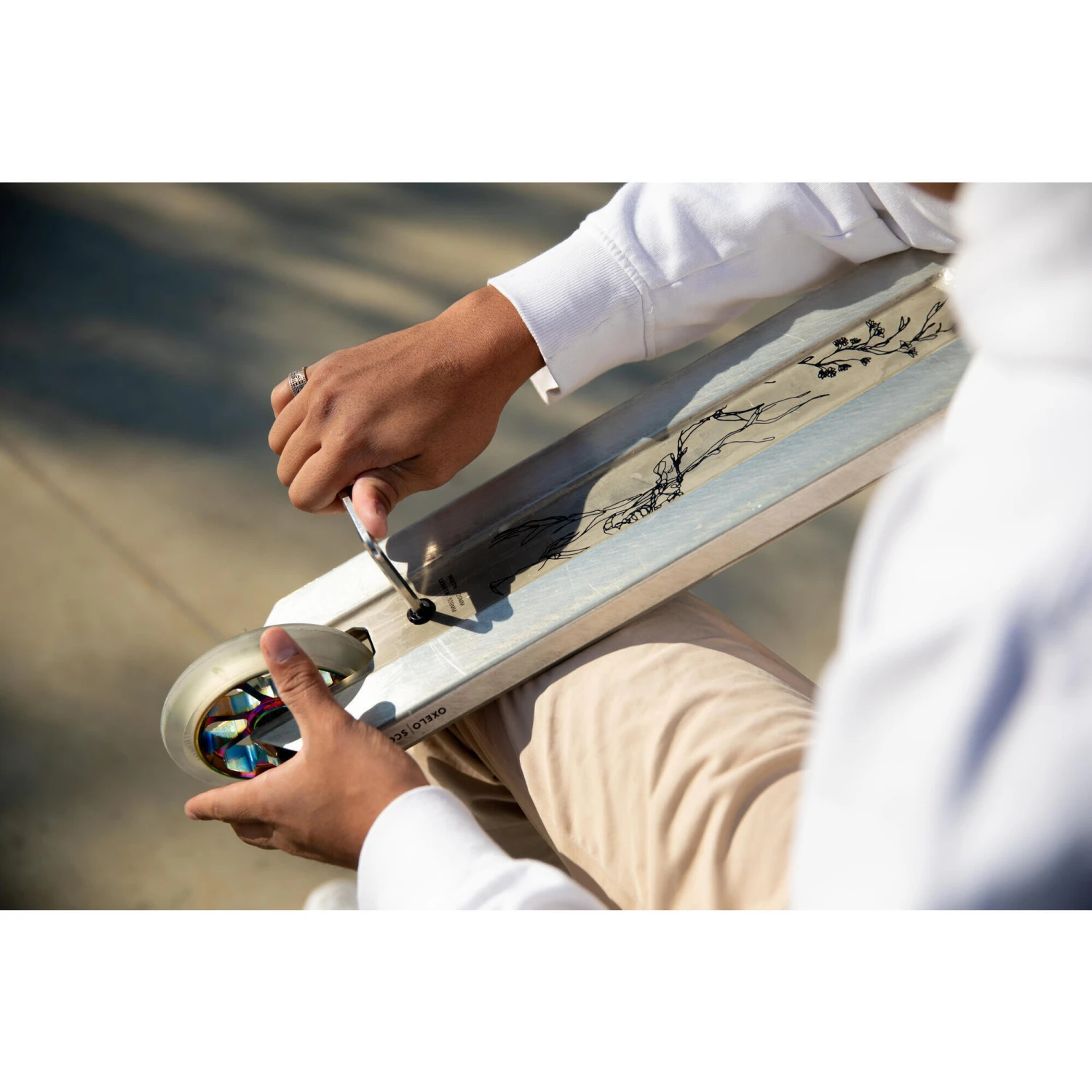

This system should be tightened as soon as you notice any play in the headset. Simply take the bar off by unscrewing the collar clamp, then tighten the self-locking screw.

Wheels

The wheels measure 120 mm, with an aluminium body and 88A “high rebound” PU rubber.
Supplied with long-lasting ABEC7 (608Z ABEC-7 NMB) bearings.
This wheel size is more stable and faster for freestyle scootering.

BRAKE

We designed a FLEX NYLON brake for this scooter. It is designed to return to its original shape after each push. The main difference compared to a spring brake is that it reduces vibrations and is lighter.This system also stops the rubber on the wheels from wearing out so quickly.

Pegs

This freestyle scooter has two aluminium pegs with two different lengths: one for the front (the longer one) and the other for the rear (the shorter one).
The diameter of each PEG is 36mm. This makes grinds more stable and therefore easier to learn.

HANDLES

The ribbed TPE handles give you good grip.
